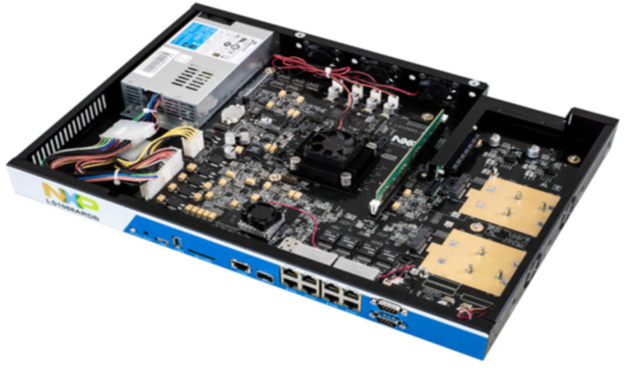

LS1088A-RDB 开发板




硬件配置



LS1088A silicon feature

LS1088ARDB feature

8x Cortex-A53 (2x 1M L2 Cache), 800MHz to 1.6Ghz

1600Mhz

32/64-bit DDR4

64-bit, 6G DDR4 UDIMM, 2100MT/s

8 Serdes lane

     Up to two 10G/two 3.25G/four 2.5G/three 5G  Ethernet MAC

1x 10G SFP+ port , 1x 10G BaseT port

8x 1G SGMII port via F104 switch

3 PCIe controller ( PCIe3.0), up to x4

1 PCIe x1 slot, 2 miniPCIe slot

1x SATA 3.0 controller

3x high-speed USB3.0

SD/SDXC/eMMC controller

QSPI interface

Four I2C controller

2x 4-pin UART

IFC support NAND & NOR flash

1x SATA interface

2x USB3.0 interface

1x SD card slot

2x QSPI Flash

4x I2C bus

2x UART interfaces

8-bit NAND flash(512MB)
