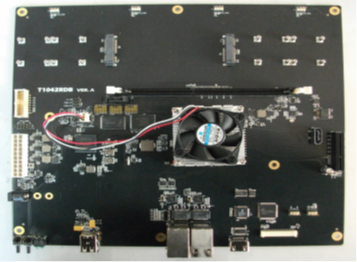

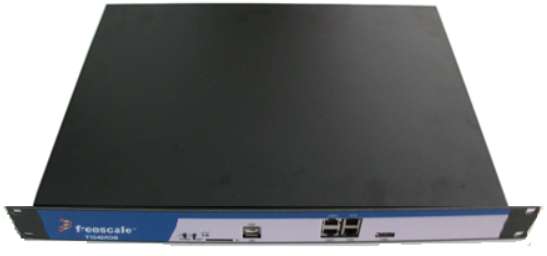

T1042RDB 开发板




硬件配置



T1042 silicon feature

T1042RDB feature

4 e5500 core (256KB L2 cache, 256KB L3 coreNet cache), up to 1.4Gz

1400Mhz

32/64-bit DDR3L/4 SDRAM with ECC & interleaving

72-bit, 4G DDR3L UDIMM, 1600MT/s

Four 1Gbps Ethernet controller

two 1G RGMII port

Four PCIe 2.0 controller, up to x4

1 PCIe x1 slot, 2 miniPCIe slot

Two SATA controller

Two high-speed USB2.0

SD/SDXC/eMMC controller

eSPI interface

Four I2C controller

Four UAR

IFC support NAND & NOR flash

DIU controller

QUICC Engine/TDM/HDLC interface

1 SATA interface

2 USB interface

1 SD card slot

1 SPI Flash

2 I2C bus

2 UART interfaces

16-bit NOR flash (256MB), 8-bit NAND flash(1024MB)

HDMI and LVDS interface

Deepsleep

0.3W power consumption in Deepsleep mode
