LS1012A silicon feature

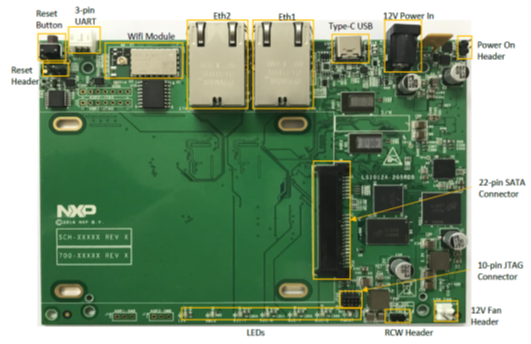

LS1012A-2G5RDB feature

1 ARM Cortex-A53 (256KB L2 cache)

800Mhz

16-bit DDR3L SDRAM

1G DDR3L SDRAM

3 Serdes lane up to 6Ghz

2x 2.5G/1G Ethernet MAC

2x 2.5G BaseT port

or 2x 1G RGMII port

1x PCIe controller (PCIe 2.0)

N/A

1x SATA 3.0 controller

1x USB3.0 and 1x USB2.0

2x SD3.0/SDIO/eMMC controller

QSPI interface

2x I2C controller

2x 4-pin UART

2x I2S

1 SATA interface

1x USB3.0 Type-C interface

1x  SDIO WiFi module,  1x eMMC

1x QSPI Flash

2 I2C bus

1x UART interfaces
