MT8XXX-N development platform

With Type-N carrier for network communication application

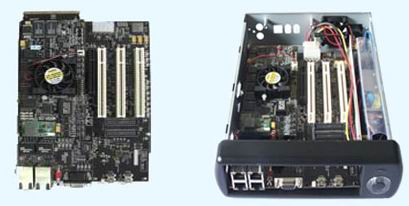

(Above is the picture for MT85XX-N)

Overview

The Type-N Carrier serves as a generic I/O platform for PowerQUICC II Pro and III family processor cards. It provides standard connectors such as 3.3 V 32-bit PCI slots, serial port, Ethernet connector, for testing and developing the functionality of different interfaces of MPC83xx and MPC85XX devices. Combined with reusable PowerPC processor card, Type-N carrier  can be used for networking device application.

Applications

· Router, Switch, and Firewall box

· Industrial control extend A/D, D/A, CAN bus, Video card

· MOD Bus over Ethernet

Features

· Ethernet port:

      — Two 10/100/1000 BaseT copper interfaces,

      — Two 10/100/1000 BaseT copper interfaces (for MPC8548E/8572), or

           One 10/100 BaseT Ethernet port (for MPC8541E/8560)

· PCI slot :

      — Two 32-bit PCI slots,

      — One 32-bit PCI slots (for MPC8541E/8548E/8572 only)

· PCI-Express: one (for MPC8548E/8572)

· USB 2.0 port : Two mini-USB AB connectors (for MPC83xx only)

· RS-232 Serial Port : One

· General information:

      — I2C RTC

      — EEPROM

      — LM75 temperature sensor

· AMC connector for backplane connection

· Voltage : 12 V and 5 V power supplies

· Dimension: 8.7 inch x 5.8 inch

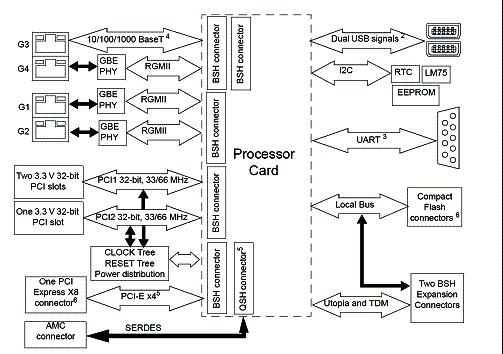

Block diagram

Supporting Processor

MPC8347PC Rev. A

MPC8360PC Rev. A and rev. B

MPC8541EPC//8560PC Rev. B and Rev. C

MPC8548PC Rev. A

MPC8572PC

Ordering information

Model	Products Description	Brand	Remark
MT8XXX-N	MPC83XX/85XX development platform with Type-N carrier	MICETEK
USB TAP	USB TAP In-Circuit Emulator for PowerPC	MICETEK	Optional
JediView For PowerPC	JediView for PowerPC IDE	MICETEK	Optional

Document download

Flyer for PQ3 development board (processor card + carrier)

Type-N/S/A carrier User Manual & Data Sheet

For more information, please feel free to send Email to us.
