MT85XX-A development platform

With Type-A carrier for the ATCA or MicroTCA chassis

Overview

Type-A carrier card (Advanced Mezzanine Card) is a standard card architectures established by PICMG and used in ATCA chassis. AdvancedTCA system is consisted of some AMC cards and chassis for targeted telecommunications core applications of the highest reliability. MicroTCA system is a shelf and infrastructure to support the direct use of AMC Modules into the backplane. So it is suitable for local system and outdoor environment.

     MPC85XX processor card with Type-A carrier                                       UTCA8548 system

Application

ATCA or MicroTCA chassis

Features

·    PCI-Express and SRIO : from X8 SERDES interface (for MPC8548 and MPC8572 only)

·     Ethernet port : Two 10/100/1000 Ethernet ports

·    PCI slot: One mini PCI1 interface (optional in standalone mode)

·     USB 2.0 port :

      — One mini-USB AB connectors (for MPC83xx only)

      — One extra mini-USB AB Connector (optional in standalone mode)

·    SATA : One SATA controller (Optional in standalone mode)

·     Compact Flash connector : (optional Standalone mode)

·     MMU : Module management support (Optional)

·     RS-232 Serial Port : One

·     General Information :

      — RTC

      — IS24024A

      — EEPROM

·     Voltage : 12 V and 5 V power supplies (optional Standalone mode)

·     Dimension: 7.1inch x 2.9 inch

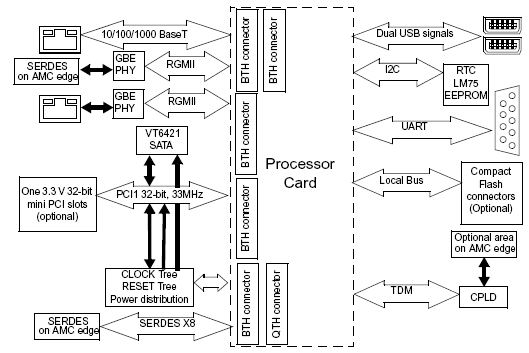

Block Diagram for Type-A carrier

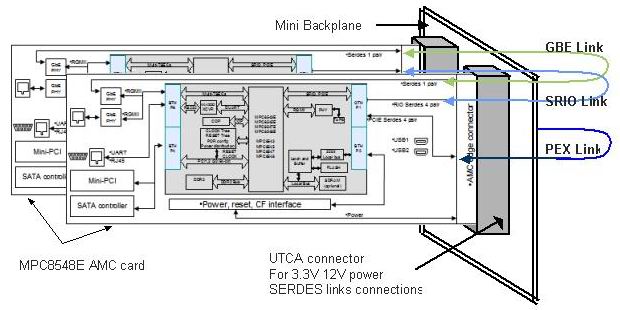

Black diagram for UTCA chassis

Target Supported

MPC8360PC Rev. B

MPC8541EPC/8560PC Rev. C

MPC8548PC Rev. B

MPC8572PC

Ordering information

Model

Products Description

Brand

Remark

MT85XX-A

MPC85XX development platform with Type-A carrier

MICETEK



UTCA85XX

UTCA system including two sets of MT85XX-A

MICETEK

Optional

USB TAP

USB TAP In-Circuit Emulator for PowerPC

MICETEK

Optional

JediView for PowerPC

JediView for PowerPC IDE

MICETEK

Optional

Document download

Flyer for PQ3 development board (processor card + carrier)

Type-N/S/A carrier User Manual & Data Sheet

For more information, please feel free to send Email to us.
