T2080 silicon feature

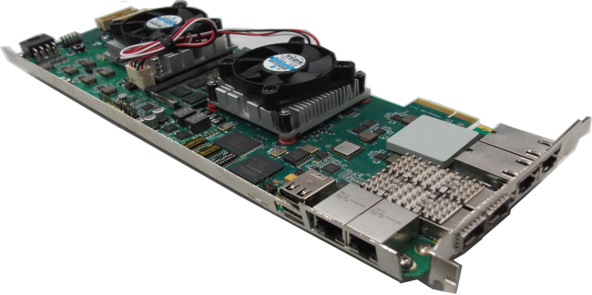

T2080PCIe feature

4  dual-thread e6500 core (2MB L2 cache, 512KB coreNet cache), up to 1.8Gz

1533Mhz

32/64-bit DDR3/3L SDRAM with ECC & interleaving

72-bit, 4G DDR3L SODIMM, 1600MT/s

16 Serdes lane up to 10.31Ghz

     Up to four 10Gbps/eight 1G/four 2.5G Ethernet MAC

two 10G SFP+ port , two 10G BaseT port

two 1G RGMII port

Four PCIe controller (2 for PCIe2.0, 2 for PCIe3.0), up to x8

Two Serial RapidIO 2.0 controller

1 PCIe x4 slot, 1 PCIe x4 gold-finger

SD/MMTwo SATA 2.0 controller

Two high-speed USB2.0

SD/SDXC/eMMC controller

eSPI interface

Four I2C controller

Four 2-pin UART / two 4-pin UART

IFC support NAND & NOR flash

2 SATA interface

2 USB interface

1 TF card slot

1 SPI Flash

2 I2C bus

2 UART interfaces

16-bit NOR flash (128MB)

8-bit NAND flash(512MB)
