MCF51CN development kit based on Tower system
TWR-MCF51CN-KIT is a low –cost development tool for Coldfire MCF51CN128 Ethernet controller. This development kit is one part for
Freescale Tower System, which is a modular, reconfigurable development platform and supplies the developer whole set evaluation
board, development tools and software resource through fast prototyping and fasten to the market.
MCF51CN Microcontroller modular is independent debugging tool and can be
purchased individually; the model is TWR-MCF51CN:
o
Compatible with Freescale’s Tower System
o
MCF51CN128
Microcontroller
—
Fast Ethernet controller
(FEC)
—
Mini-FlexBus
External Bus Interface
—
10/100 baseT Ethernet with DMA
o
Embedded open-source BDM
o
Freescale’s Tower System small standard (
o
RS232 and RS485
o
Ethernet
o
CAN
o
USB supporting
Host/Device/OTG mode
o
Support outward
communication interface
o
Power adjust circuit with
standardized bus was supplied
o
Four card-edge connectors PCI
Express slot
o Two 80-pin expansion connectors for outward facing cards (e.g. LCD module)

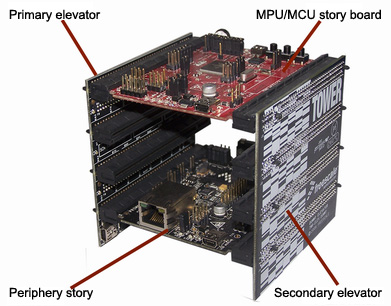

Picture of TWR-MCF51CN-KIT
TWR-MCF51CN-KIT development tool is a complete tool package and includes:
TWR-MCF51CN
– Ethernet Microcontroller modular with the functions of MCF51CN128, such as
buttons, LED, Potentiometer and others module
TWR-SER – Serial modular, supplying Ethernet, USB, RS232/485 and CAN
connector
TWR-ELEV – Two boards, providing structural integration, communicating
interface and power supply adjust circuit with standardized bus
USB/ Ethernet cable
DVD, including user guide, software, training and other related documents
Printed user guide, introducing how to design referring to this development platform

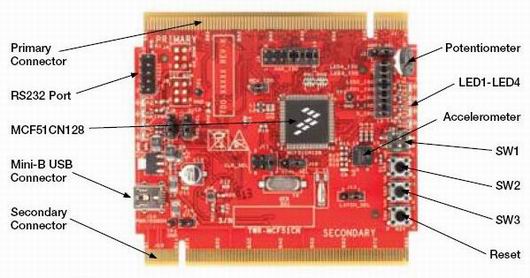

Functions of TWR-MCF51CN
For more information, please feel free to send Email to us.
