MiNAS 101
Network Attached Storage
Solution to
protect and share the data
for the SMB and SOHO
Overview
MiNAS 101 Network Attached Storage enables
you to store and share the document, files and digital media with everyone on
the small office or home office network. It also can meet the demands of the
volume expansion for clients, servers and PCs. MiNAS 101 supplies four built-in
SATA hard drives, which the total capacity is up to 2TB. With simple installing
and friendly user interface, user can complete the system installation and
configuration quickly. It’s convenient for the device to expand the storage by
adding USB hard drives and back up the important data to external storage via
the USB 2.0 port. A built-in printer server can print files from anywhere on
your network. MiNAS 101 is ideal of data protection and share for Small or
Medium Business, Small Office and Home Office, the educational industry and
government etc.
· Four built-in SATA hard
drives, which capacity is up to 2TB
· Support RAID
0, 1, 5 for better file transfer performance and data protection
· Gigabit Ethernet with
high-speed transmission service
· Four USB2.0 ports for expanding the storage capability and back up files to external USB hard drive
with low cost
· Built-in USB printer can be
shared on your network
· Easy to install, set up,
manage and back up
· Keep data
safe by only giving rights to specific users or groups
Hardware specification
|
CPU |
Freescale MPC8349E@533MHz |
|
Memory |
256-Mbyte DDR2 DIMM SDRAM |
|
Flash |
16-Mbyte Flash |
|
RAID level |
Support RAID 0,1,5 |
|
Hard drive |
4 x 3.5’’ SATA I/II Hard drive |
|
Stand capacity |
640G (4 x 160G) |
|
Max. Capacity |
2TB (4 x 500G) |
|
Ethernet port |
1 x 10/100/1000M RJ-45 Ethernet
interface; 5+1 Port Gigabit
Ethernet Integrated PHY Switch |
|
USB port |
USB 2.0 x 4, supporting printer,
external HD |
|
LED |
Four for HD and one for Power |
|
Button |
One for Power and one for reset |
|
Dimension |
330mm x 225mm x 220mm (L x W x H) |
|
Weight |
Net weight: 6.5Kg (including four HD) |
|
Power |
100~240V/50~60Hz |
|
Consumption |
50~80W |
Software specification
|
Operating system |
Linux |
|
Network |
TCP/IP, DHCP client, CIFS/SMB, AFP,
HTTP, FTP, DNS, NTP, Jumbo Frame |
|
Client |
Microsoft Windows 98/ME/2000 /NT2003/XP, Mac OS, Linux |
|
Disk management |
RAID 0, 1, 5/ Drive properties/ disk
checking |
|
Backup |
Optional |
|
Web Browser |
Microsoft IE, Firefox |
|
Printer server |
Share the network printer by USB
interface (only for Windows OS) |
|
Media server |
Media server Based on UPNP protocol |
|
Firewall |
Using iptables firewall |
|
Download station |
Support the BitTorrent /eMule /FTP
/HTTP downloading |
|
Version-control |
Support Subversion to manage the
source code and work for data management |
|
System status |
NAS |

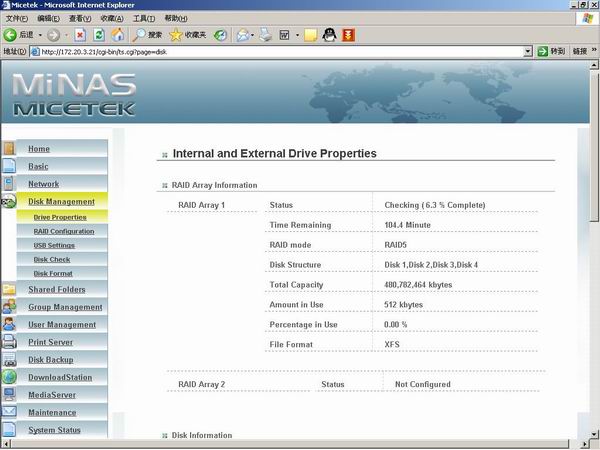

NAS interface
 |
