MICETEK introduces a new evaluation Board for SAMSUNG’s S3c4510/30 16/32-bit RSIC processor based on Ethernet system. It helps you for full-speed design and simple chip evaluation, and early development of hardware and software. lt also comes with free schematic, giving hardware engineers a reference design that can be applied to their own boards later. |
S3C4510/30
S3c4510/30
consists of 16-/32-bit RISC (ARM7TDMI) CPU kernel, 8k byte unified cache/SRAM,
12C-bus controller, Ethernet controller with 2-channel buffered DMA,2 HDLC with
4-channel buffered DMA,2-channel GDMA,2 UARTs, two 32-bit timers, 18
programmable I/O ports, interrupt controller, and a system manager, it also
supports JTAG port for the
application test.
Circuit Description
Board Support Package (optional)
·
uCLinux
·
ThreadX
·
UC/OS
II

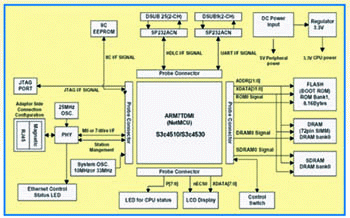

EV4510/30 Features
· The Ethernet interface has a complete IEEE802.3 physical layer interface with Ethernet
hub/router side RJ45 connector
configuration
·
S3c4510/30:16/32-bit RISC
microcontroller
·
Boot ROM:2M bit,16M bit, support byte,
half-word, word size boot ROM
·
DRAM:72-pin SIMM module with two banks
and EDO
·
DRAM support
·
SDRAM: Two 4M 16 with 2banks SDRAM
support
·
I 2 C-bus EEPROM
Standard Interface
· Two serial ports, one for console
· Two-channel serial communication
interface
· 10/100Mbps Ethernet interface
· External I/O: status LCD driver
· General I/O: control switches and
status display LED
· 20-pin JTAG interface
