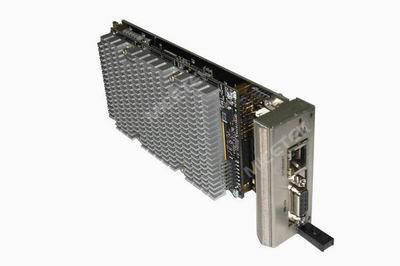

MSC8156 AMC card consists of a single width, full height AMC board and a MSC 8156 processor card featuring three Freescale MSC8156 six-core DSP processors with operating at up to 6GHz. MT 8156A can be used to dramatically advance the capabilities of wireless broadband base station equipment The MSC8156 is able to handle a broad range of next-generation standards, including 3G -LTE, TDD-LTE, TD-SCDMA, and WiMAX. The MSC8516AMC can work as a stand-alone module outside of the integrated ATCA or MicroTCA system. MT 8156A can be used to dramatically advance the capabilities of wireless broadband base station equipment. MICETEK is now open for MSC8156AMC cards on order; the delivery time is about three months.

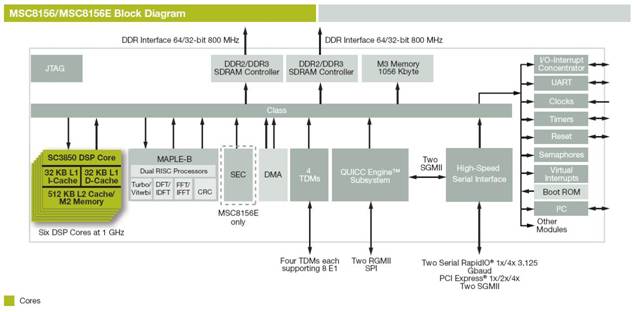

MSC8156 Block Diagram



Features of MSC8516AMC

   •    One 8-port x4 sRIO switch which support up to 3.125Gbaud for each lane

   •    One 6-port SGMII Ethernet switch

   •    Two x4 sRIO connections to port of back plane

   •    Two 1000 Base-X connections to port of back plane

   •    One Ethernet Quad PHY for RGMII to SGMII interchange

   •    One RS232 Connector, RJ45 Connector and reset button on front panel

   •    Two CPLDs for power sequence, clock, reset, interrupt and misc. logic control

   •    Swithcing and LDO power supplies for different voltages including 1V, 1.2V, 1.5V, 2.5V and 3.3V

   •    Three QSH connectors for six x4 sRIO interfaces, dual x4 sRIO interfaces from each DSP

   •    Two BSH connectors for RGMII, DSP GPIO, Interrupt, reset, clocks and power supplies

   •    Support IPMB interface

   •    Optional Module management controller

   •    Single width full height AMC likes form factor

   •    RoHS compliant

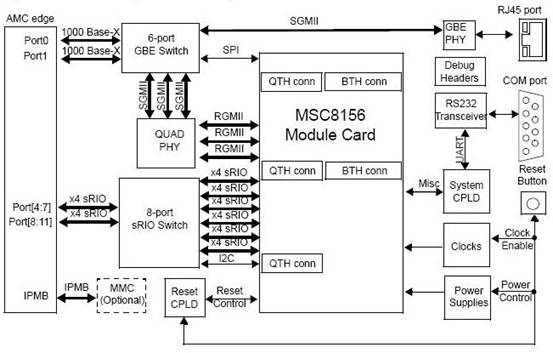

MSC8156AMC block diagram



Ordering information

　

Model	Products Description	Brand	Remark
MSC8156AMC	DSP MSC8156 AMC card	MICETEK
