CPU: MPC860SAR/T /P (or derivatives)

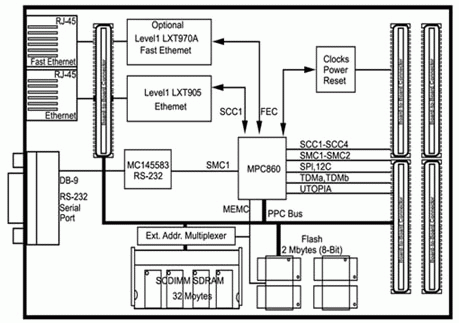

5 board-to-board connectors provide access to the MPC860 signals

128 Mbytes SDRAM (support 16 Mbytes - 128 Mbytes SODIMM SDRAM)

4 Mbytes Flash memory space (support 2 Mbytes 32-bit Flash or 2 Mbytes - 8 Mbytes 8-bit Flash)

Build-in RS-232 Serial Port

Build-in 10BaseT Ethernet

Build-in BDM Port

Optional 100BaseT if MPC860T or MPC860P is used

PSOS, ThreadX ,INTEGRITY, Vxworks & Embedded Linux BSP available.

ROM monitor Metrowerks MetroTRK is supported , easy Speed to link with Code Warrior IDE

Suitable for fast turn around time projects and proto-type evaluation

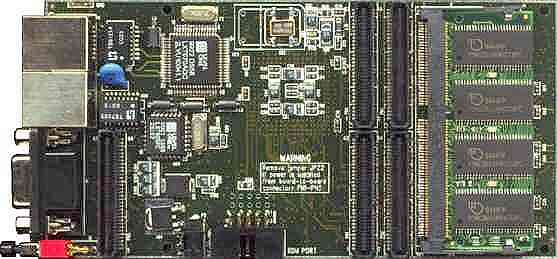

Small in size 14.9 CM * 7.4 CM

CE approval
