MPC8315E-RDB Reference Design Board
 |
Overview
The MPC8315 reference platform ( MPC8315E-RDB) is ideal for hardware and software development of the 2-drive consumer network attached storage (NAS) and the digital media server. The MPC8315E-RDB is a system featuring the powerful PowerQUICC™ II Pro processor, which includes a built-in security accelerator. This low-cost, high-performance system solution consists of a printed circuit board (PCB) assembly known as the MPC8315E-RDB Board, plus a board support package (BSP), distributed in a CD image. This BSP enables fastest possible time-to-market for development or integration of applications including home NAS and NAS+WAN gateway. |
Applications
·
2
drive Network Attached Storage (NAS)
·
Digital Media Server
(DMS)
·
Residential Gateway (VoIP, Wifi, Storage)
·
Printing/Imaging
MPC8315E processor
The increased internet broadcast and downloads for personal
and premium content is driving a need for a secure highly integrated platform
to multimedia distribution within the home. The MPC8315E provides a high
performance Power Architecture™ e300 core up to 400MHz with 16K I/D L1 cache,
and integrated x2 SATA controllers that help to reduce overall BOM cost. The
System on a Chip (SoC) also includes two Gigabit Ethernet controllers for
network connectivity, two x1 PCI-Express lanes, TDM interface for VoIP, High
Speed USB 2.0 with PHY integrated and security engine for encryption algorithm
offload. The MPC8315E, based in 90nm process technology, provides high
integration that simplifies board design and provides a cost effect solution
for critical applications such as network attached storage.

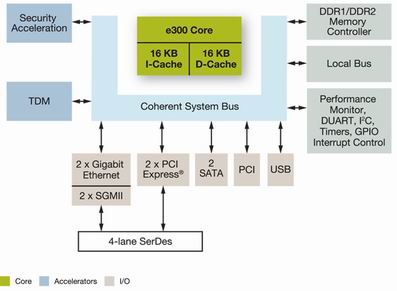

MPC8315E block diagram
 |
Hardware of MPC8315E-RDB
This section presents
the features, specifications and block diagram of the MPC8315E-RDB board.
· CPU: Freescale MPC8315E running at 400/266 MHz (CPU/DDR2)
· Memory subsystem:
o 128MB unbuffered
DDR2 SDRAM discrete devices
o 8MB NOR Flash
o 32MB NAND Flash
o 256MBits M24256 serial
EEPROM
· Ethernet:
o 2 Gigabit
RGMII connections directly to PHY
o One Ethernet connection to broadband powerline capability using DS2
· High-Speed USB
o Connector directly on
board
o 3-port USB hub
· PCI
o One standard and one MiniPCI connector
· PCI Express
o PCI Express add-in
connector
o MiniPCI Express for
WLAN
· SATA
o Two standard SATA
connectors
o eSATA will be
available through SATA-eSATA connectors
· SPI/TDM
o Connected to dual
Legerity SLIC/SLAC
· I2C
o Connected to
real-time clock
o May be eliminated
using the MCU
· Dual UART
o Connectors for debug
connectivity
o Extra header (compliant
to MPC832x RDB) for Bluetooth®/ZigBee® future
connectivity
· Local bus
o NAND flash/NOR flash

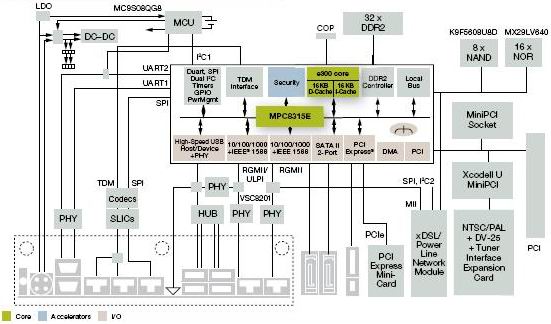

MPC8315E-RDB block diagram
 |
Related product
◆
JediView for PowerPC
IDE software
MPC8314E-15E
Family Comparison
|
|
MPC8314E |
MPC8315E |
|
Core |
e300 |
e300 |
|
CPU Speed |
Up
to 400 MHz |
Up
to 400 MHz |
|
L1 I/D Cache |
16KI/
16KD |
16KI/
16KD |
|
Memory Controller |
16/32
bit DDR/2 up to 266MHz |
16/32
bit DDR/2 up to 266MHz |
|
Local bus |
16
bit w/NAND boot support |
6
bit w/NAND boot support |
|
PCI |
1-32
bit up to 66MHz (2.3) |
1-32
bit up to 66MHz (2.3) |
|
PCI Express |
2-x1 |
2-x1 |
|
SATA |
— |
2x1
SATA 2.0 w/PHY |
|
Ethernet |
2-10/100/1000
RGMII, (R)MII, RTBI, SGMII |
2-10/100/1000
RGMII, (R)MII, RTBI, SGMII |
|
USB 2.0 |
1
Host or Device w/PHY |
1
Host or Device w/PHY |
|
TDM |
Yes |
Yes |
|
Security |
E
version only |
E
version only |
|
UART |
Dual |
Dual |
|
I2C |
Single |
Single |
|
SPI |
Yes |
Yes |
|
Interrupt Controller |
Yes |
Yes |
|
Package |
PBGA |
PBGA |
Ordering Information
|
Model |
Description
|
Brand |
Remark |
|
MPC8315E-RDB |
MPC8315E reference design board |
MICETEK |
|
|
USB TAP In-circuit Emulator for PowerPC |
MICETEK |
Optional |
|
|
JediView for PowerPC IDE |
MICETEK |
Optional |
