Providing  MPC8349E Development Platforms

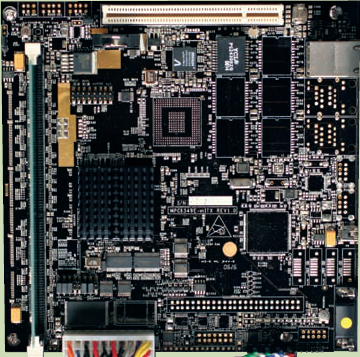

MPC8349E-mITX

MPC8349E-mITX is a high-performance development platform for Freescale MPC8349E PowerQUICC II Pro communication processor. It provides a hardware board, software source code, designing document and development tool for the developers. And it’s easy and direct to software test and development for the designer on the board and it gives a reference design for the developer’s own hardware. It saves the time for early designing of the hardware and debugging and quick the products to market.



The MPC8349E PowerQUICC II Pro family of integrated communications processors is a next-generation extension of the popular PowerQUICC II line. Based on a system-on-chip (SoC) architecture, the MPC8349E PowerQUICC II Pro Family integrates the enhanced e300 core and advanced features, such as DDR memory, Dual Gigabit Ethernet, Dual PCI and Hi-Speed USB controllers. With clock speeds scaling to 667 MHz, the MPC8349E family of processors offers the highest performing PowerQUICC II devices available.



The MPC8349E PowerQUICC II Pro Family is designed to provide a cost-effective, highly integrated control processing solution that addresses the emerging needs of networking, communications and pervasive computing applications. MPC8349E processors can be used in applications such as Ethernet routers and switches, wireless LAN (WLAN) equipment, network storage, home network appliances, industrial control equipment, and copiers, printers and other imaging systems.



MPC8349E-mITX-GP

MPC8349E-mITX-GP is a cost-down development platform for Freescale MPC8349E PowerQUICC II Pro communication processor for Industry applicatioin. Compared with MPC8349E-mITX, it provides the designer a simpler hardware board, software design document and developing tool and saves the investment by reducing some unnecessary interfaces for developer. And it’s easy and direct to software test and development for the designer on the board and it gives a reference design for the developer’s own hardware. It saves the time for early designing of the hardware and debugging and quick the products to market.



32-bit MPC8349E-mITX-GP has hardware encrypting, Ethernet Media MAC, USB Master/device and OTG supporting. This platform includes a GbEthernet interface, a high-speed USB interface, serial channel and PCI slot. All of those are integrated in a low cost mini-ITX board.



Related Link:

MPC8349E-mITX reference development board

MPC8349E-mITX-GP cost-down development board



For more information, please feel free to send Email to us.
